產品介紹

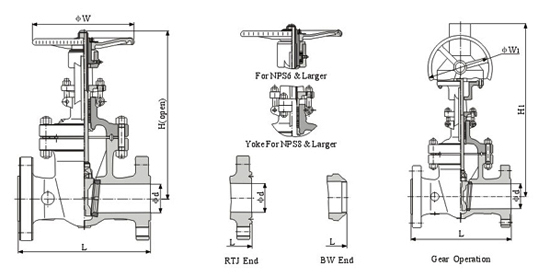

主要尺寸
磅級 |
規格 |
L |
d |
H |
H1 |
W |
W1 |
重量(kg.) |
NPS |
DN |
RF |
RTJ |
BW |
H.W |
G.O |
600 |
2 |
50 |
292 |
295 |
292 |
51 |
444 |
- |
200 |
- |
32 |
- |
21/2 |
65 |
330 |
333 |
330 |
64 |
500 |
- |
250 |
- |
52 |
- |
3 |
80 |
356 |
359 |
356 |
76 |
558 |
585 |
280 |
310 |
60 |
87 |
4 |
100 |
432 |
435 |
432 |
102 |
665 |
695 |
300 |
310 |
107 |
134 |
5 |
125 |
508 |
511 |
508 |
127 |
760 |
790 |
350 |
310 |
175 |
227 |
6 |
150 |
559 |
562 |
559 |
152 |
868 |
900 |
450 |
310 |
216 |
268 |
8 |
200 |
660 |
664 |
660 |
203 |
1073 |
1110 |
500 |
310 |
399 |
451 |
10 |
250 |
787 |
791 |
787 |
254 |
1263 |
1300 |
650 |
460 |
605 |
657 |
12 |
300 |
838 |
841 |
838 |
305 |
1600 |
1650 |
700 |
460 |
851 |
893 |
14 |
350 |
889 |
892 |
889 |
337 |
1705 |
1750 |
900 |
460 |
1177 |
1232 |
16 |
400 |
991 |
994 |
991 |
387 |
1835 |
1900 |
900 |
460 |
1513 |
1568 |
18 |
450 |
1092 |
1095 |
1092 |
438 |
- |
2020 |
- |
600 |
- |
1980 |
20 |
500 |
1194 |
1200 |
1194 |
489 |
- |
2172 |
- |
600 |
- |
2460 |
24 |
600 |
1397 |
1407 |
1397 |
591 |
- |
2650 |
- |
600 |
- |
3650 |
900 |
2 |
50 |
368 |
371 |
368 |
51 |
500 |
- |
280 |
- |
70 |
- |
21/2 |
65 |
419 |
422 |
419 |
64 |
550 |
- |
280 |
- |
110 |
- |
3 |
80 |
381 |
384 |
381 |
76 |
610 |
660 |
300 |
310 |
140 |
167 |
4 |
100 |
457 |
460 |
457 |
102 |
702 |
750 |
350 |
310 |
200 |
227 |
5 |
125 |
559 |
562 |
559 |
127 |
850 |
900 |
400 |
310 |
258 |
285 |
6 |
150 |
610 |
613 |
610 |
152 |
980 |
1060 |
500 |
460 |
358 |
410 |
8 |
200 |
737 |
740 |
737 |
203 |
1100 |
1140 |
650 |
460 |
550 |
600 |
10 |
250 |
838 |
841 |
838 |
254 |
1320 |
1370 |
700 |
460 |
1000 |
1100 |
12 |
300 |
965 |
968 |
965 |
305 |
1500 |
1560 |
900 |
460 |
1215 |
1310 |
14 |
350 |
1029 |
1038 |
1029 |
322 |
1900 |
1950 |
900 |
600 |
1600 |
1700 |
16 |
400 |
1130 |
1140 |
1130 |
373 |
2050 |
2100 |
900 |
600 |
2150 |
2330 |
|
| |
