產(chǎn)品介紹
適用標準
鋼制旋塞閥，API599/API 6D，ISO 14313
溫度和壓力，ASME B16.34
結構長度，ASME B 16.10
端法蘭， ASME B 16.5
防靜電設計，API 599
耐火標準，API-607
對焊端，ASME B16.25
設計說明
栓接閥蓋
PTFE襯里、錐形柱塞
無需潤滑
桿柱一體
在線調節(jié)
防火防靜電設計
限位裝置
可更換閥座
法蘭或焊接端
可安裝渦輪

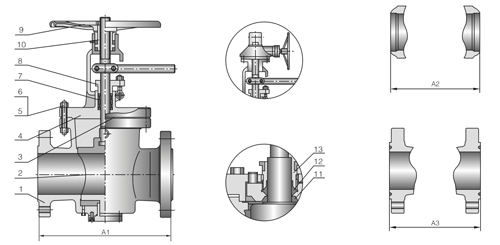

標準材料規(guī)范
| NO. |
Part Name |
ASTM Material |
| Carbon steel |
304 Type |
316 Type |
04LType |
316LType |
20 Alloy |
| 1 |
Body |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
| 2 |
Plug |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
20 Alloy |
| 3 |
Bonnet Gasket |
304+graphite |
304+graphite |
316+graphite |
304L+graphite |
316L+graphite |
316+graphite |
| 4 |
Bonnet |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
| 5 |
Bonnet Bolt |
A193 B7 |
A193 B8 |
A193 B8M |
A193 B8 |
A193 B8M |
A193 B8 |
| 6 |
Bonnet Nut |
A1942H |
A194 8 |
A1948M |
A194 8 |
A1948M |
A194 8 |
| 7 |
Packing |
Graphite |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
| 8 |
Gland Flange |
A216 WCB |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
| 9 |
Hand wheel |
Carbon steel |
Carbon steel+Zn |
| 10 |
Sleeve |
Class Filled PTFE |
| 1* |
PTFE Optional |
主要外形尺寸和質量Class 150
| Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
11/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
| A1 |
108 |
117 |
127 |
140 |
165 |
178 |
190 |
203 |
229 |
245 |
267 |
292 |
330 |
356 |
381 |
| A2 |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
394 |
457 |
533 |
610 |
686 |
| H |
190 |
195 |
225 |
160 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
| W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
| Weight (Kg) |
9 |
10 |
11 |
17 |
19 |
23 |
25 |
30 |
55 |
82 |
98 |
130 |
178 |
250 |
380 |
主要外形尺寸和質量?Class 300
| Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
| A1 |
108 |
152 |
165 |
178 |
190 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
762 |
| A2 |
152 |
178 |
203 |
216 |
229 |
267 |
305 |
330 |
356 |
381 |
457 |
521 |
559 |
635 |
762 |
| H |
190 |
195 |
225 |
260 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
| W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
| Weight (Kg) |
9 |
12 |
14 |
19 |
21 |
28 |
34 |
39 |
75 |
95 |
135 |
200 |
255 |
415 |
650 |
主要外形尺寸和質量Class600
| Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
| A1/A2 |
165 |
190 |
216 |
229 |
229 |
241 |
330 |
356 |
432 |
508 |
559 |
660 |
787 |
838 |
889 |
| H |
190 |
195 |
225 |
260 |
260 |
280 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
| W |
120 |
140 |
140 |
180 |
180 |
200 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
| Weight (Kg) |
13 |
14 |
19 |
23 |
23 |
25 |
40 |
55 |
105 |
139 |
300 |
440 |
730 |
1150 |
1570 |
主要外形尺寸和質量?Class900
| Size |
in |
1/2 |
3/4 |
1 |
11/4 |
11/2 |
2 |
21/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
| mm |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
| A1/A2 |
229 |
229 |
254 |
279 |
305 |
368 |
419 |
381 |
457 |
559 |
610 |
737 |
838 |
965 |
1029 |
| H |
190 |
195 |
225 |
260 |
280 |
310 |
340 |
395 |
435 |
470 |
535 |
590 |
630 |
680 |
720 |
| W |
120 |
140 |
140 |
180 |
200 |
220 |
260 |
280 |
300 |
340 |
400 |
450 |
450 |
500 |
500 |
| Weight (Kg) |
16 |
17 |
26 |
30 |
33 |
39 |
50 |
70 |
137 |
181 |
397 |
590 |
860 |
1470 |
1880 |
